CITY D.60
K-TIGER CITY D.60
📩 leekyo7915@daum.net

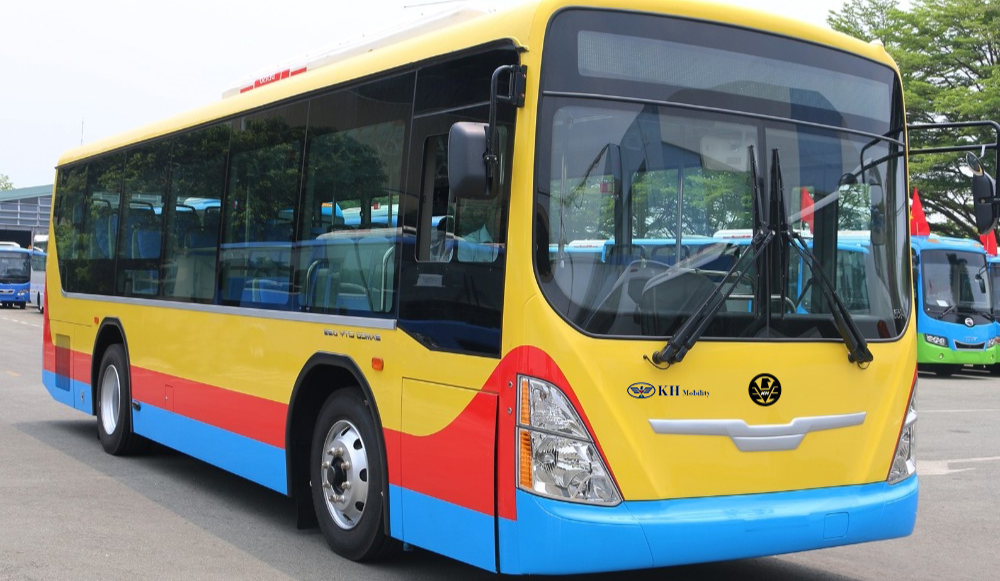

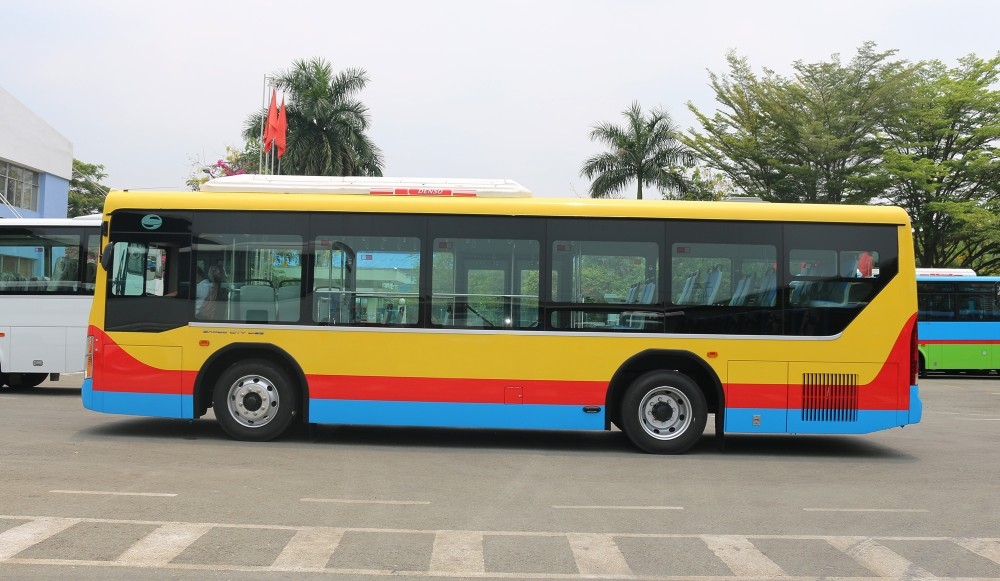

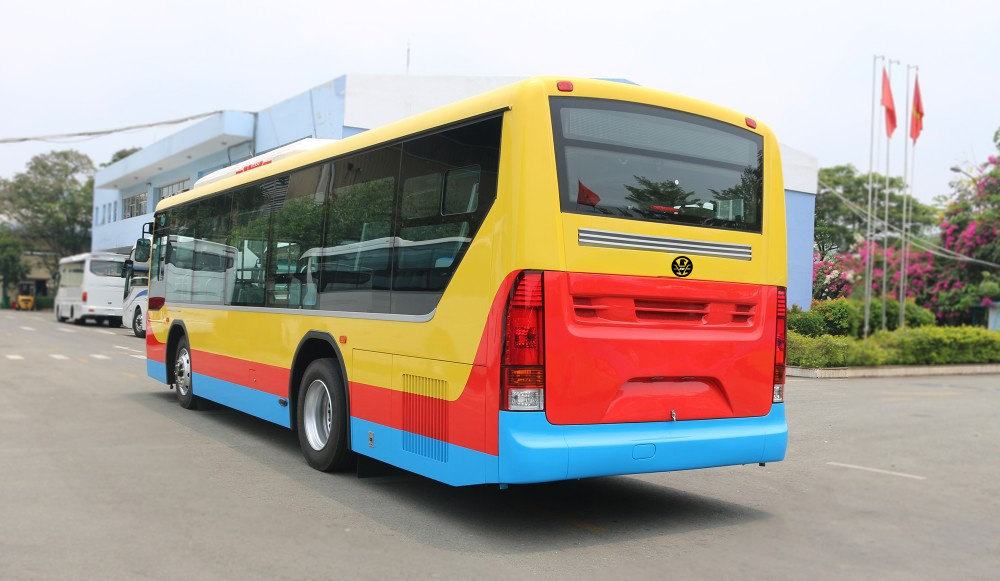

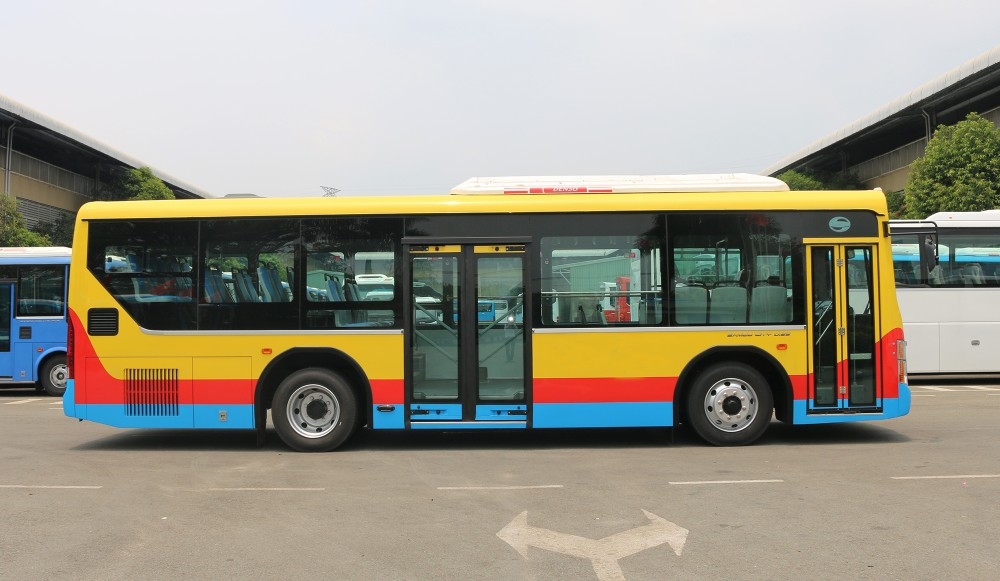

The city bus is a spacious and efficient public transport vehicle, designed for urban commuting. It has an overall dimension of 9,760 x 2,500 x 3,140 mm and a weight capacity of 8,800 to 10,200 kg. With 60 seats (27 seats + 33 standing spaces), it ensures high passenger capacity. The bus is powered by a Doosan DL06S, 4-stroke, 6-cylinder diesel engine with 170 kW at 2,500 rpm and a maximum torque of 810 Nm at 1,400 rpm, meeting Euro IV emissions standards. Its automatic double doors and Denso DJP-M air conditioning system provide comfort and convenience for passengers.
Contact us:
| SPECIFICATION | |
|---|---|
| Overall Dimension | 9,760 x 2,500 x 3,140 (mm) |
| WEIGHT (kg): 8800 / 10200 | |

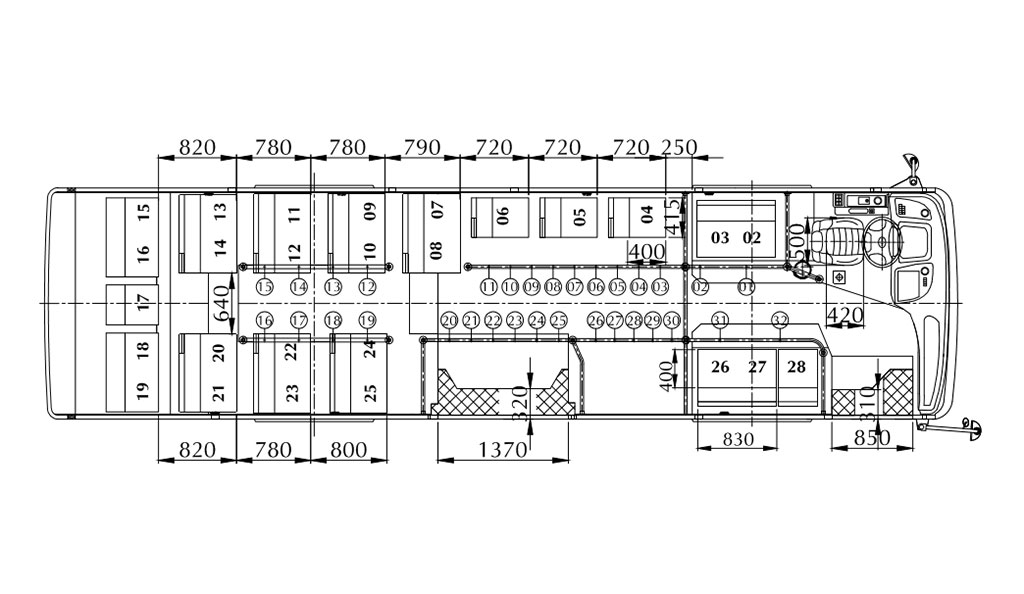

| Seats | 60 seats (27 seats + 33 stands) |
| Automatic door | 02 doors, open and close by electric |
| Chassis: Import CKD equipment, assembly in SAMCO | |
| Engine: Doosan DL06S, Diesel 4 strokes, 6 cylinders in line, DOHC, common rail, water-cooled, Euro IV, 5,890 cc | |
| Cylinder displacement | 5890 |
| Max Power | 170/2,500 (Kw/rpm) |
| Max Torque | 810/1,400 (Nm/rpm) |
| Air Conditioner | Denso DJP-M |
| TRANSMISSION | |
| Clutch | 1 dry friction disc; hydraulic drive; pneumatic assist |
| Transmission type | T9D55PN, mechanical 5 forward, 1 reverse |
| Steering system | Ball-nut type with integral hydraulic power booster, Tilt, and Telescopic |
| Brake | Drum type, pneumatic, 02 independent lines integrated ABS |
| Hand brake | Compressed air + active springs act on the rear wheels |
| SUSPENSION SYSTEM | |
| Suspension | Leaf spring with shock absorber, stabilizer bar |

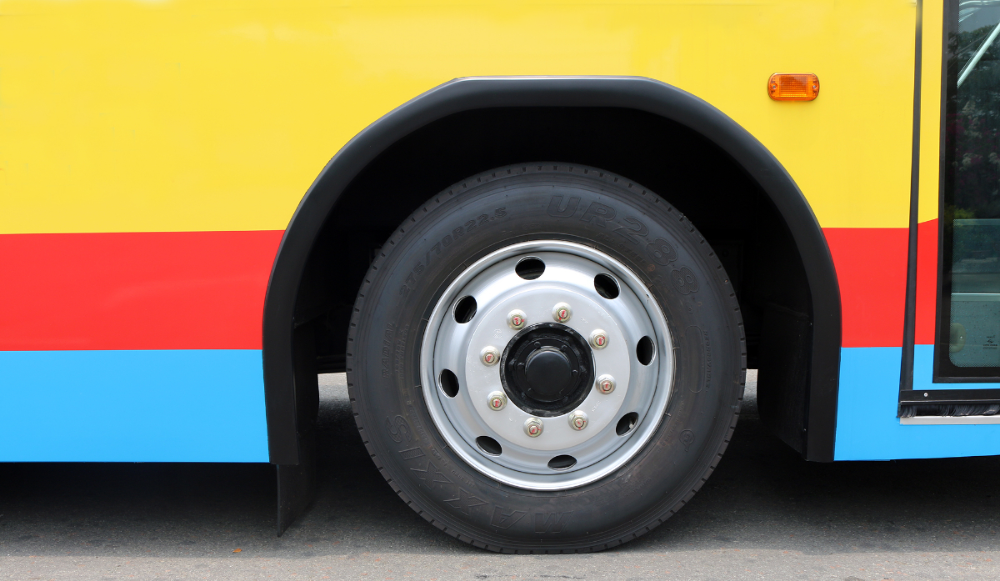

| Tire | Tubeless type 275/70R225 |
| ELECTRICAL SYSTEM | |
| Air condition | Denso DJP-M |
| Entertainment equipment | DVD 04 speakers |
| Other equipment | Fire extinguisher, emergency hammer, medical cabinets, front windshield with LED panel layout |

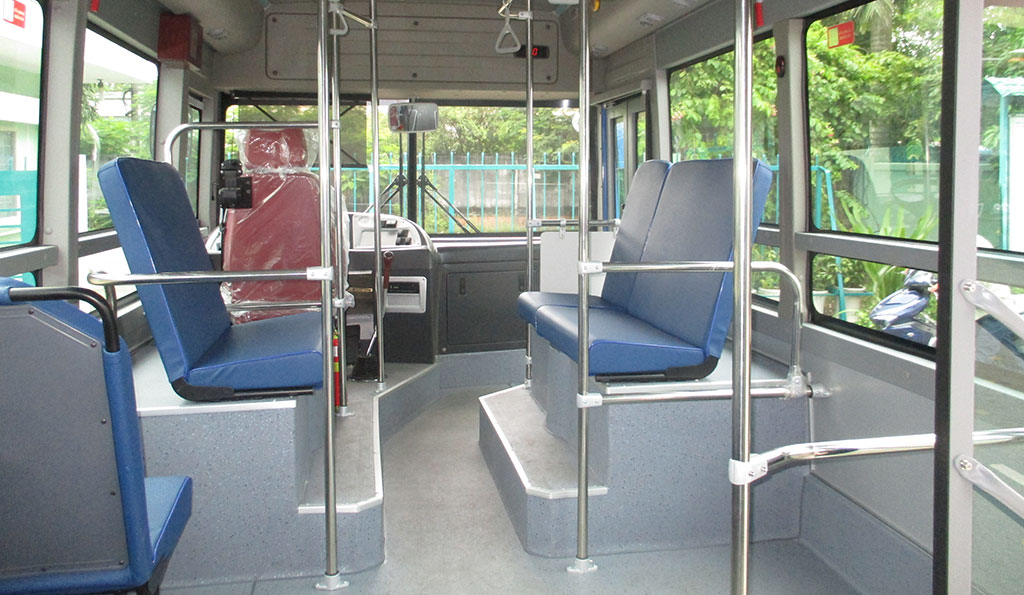

Bus Seat

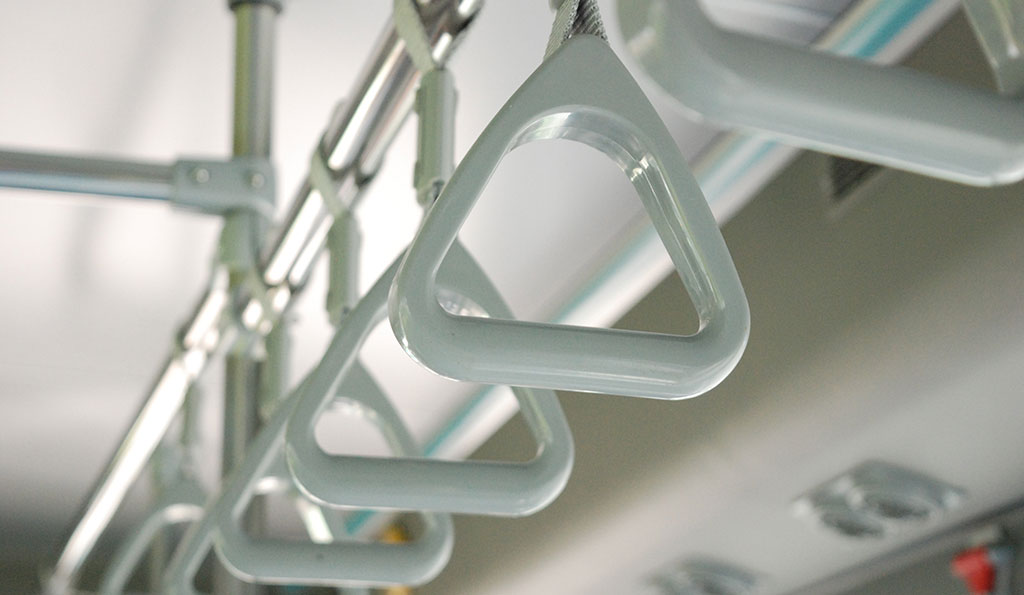

grab handles

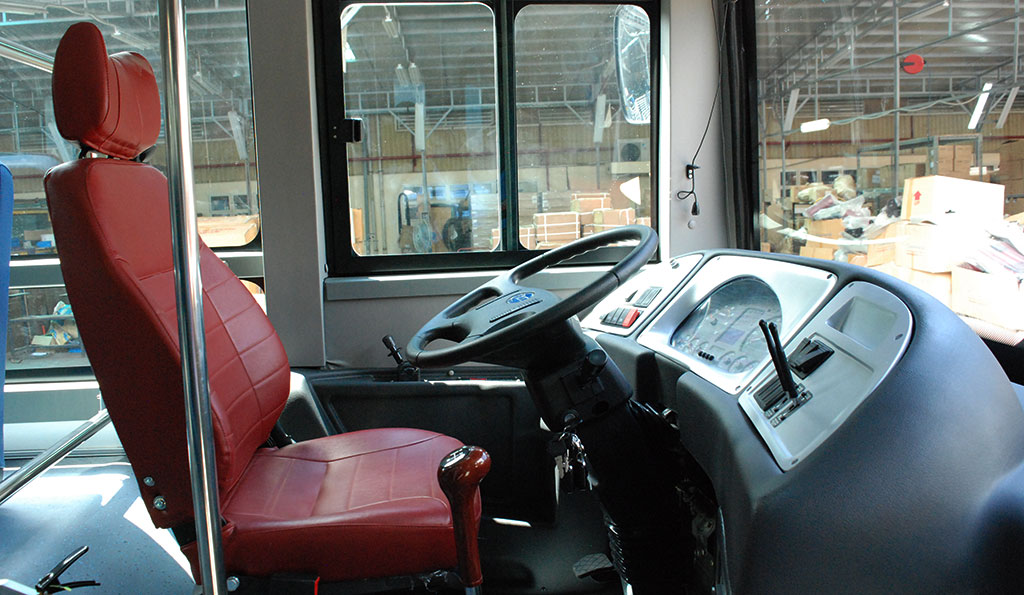

Driver Seat

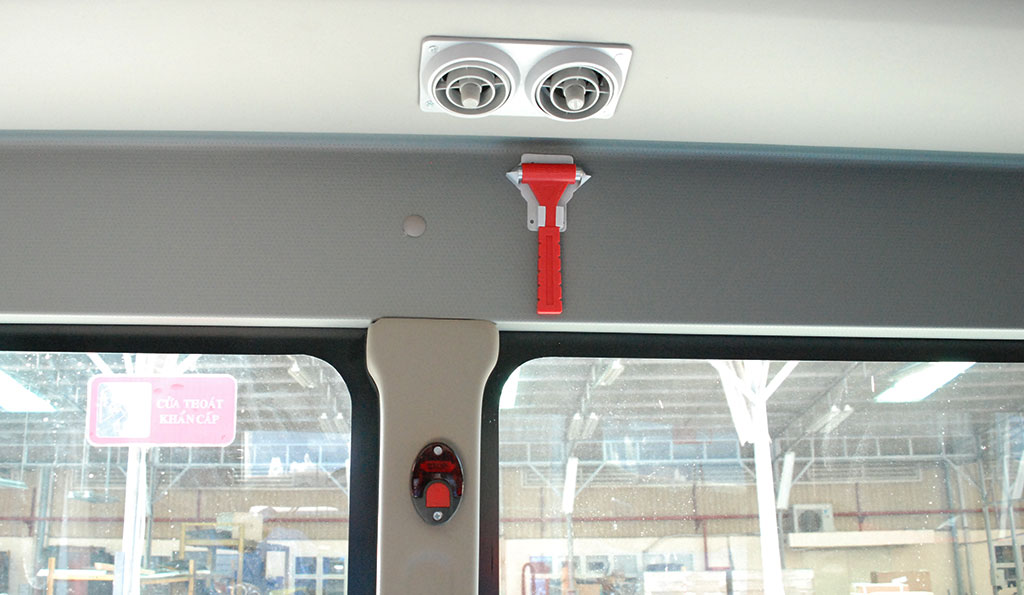

Fault hammer, stop buzzer and air conditioner vent

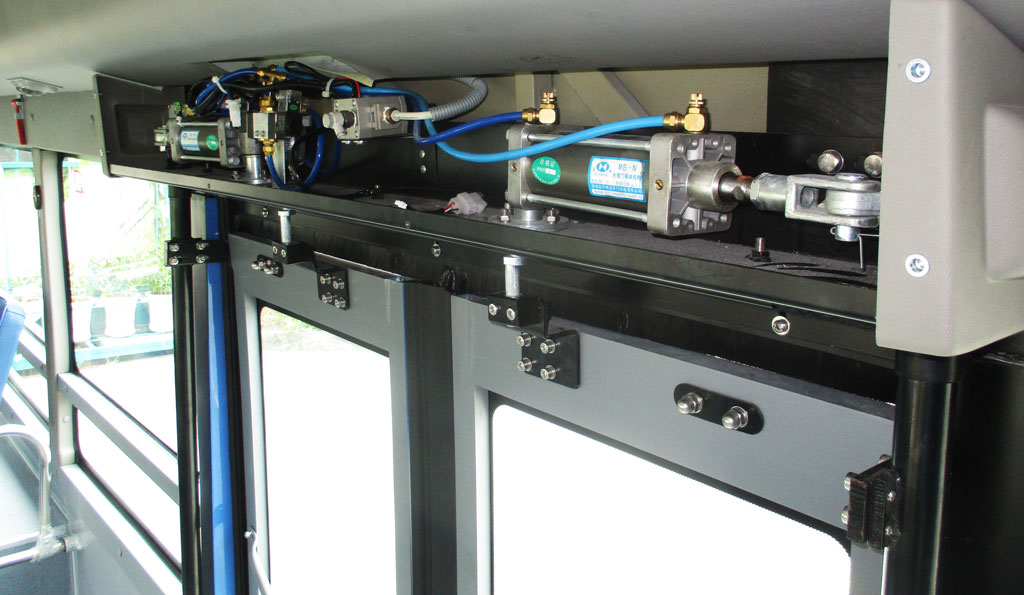

Control door opening and closing with pneumatic cylinder

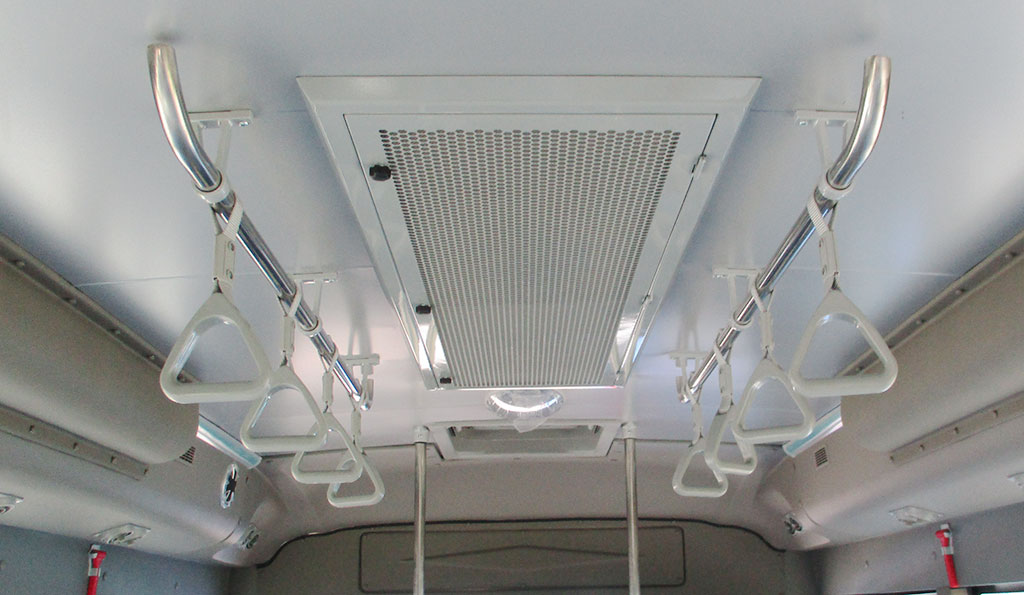

Ceiling lighting and ventilation system

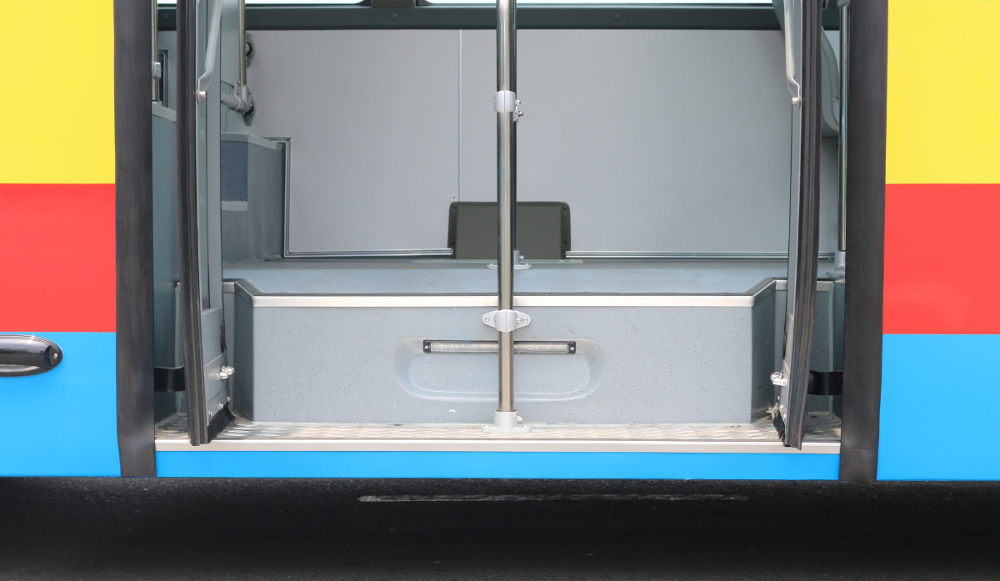

Upholstered passenger seat with wheelchair access

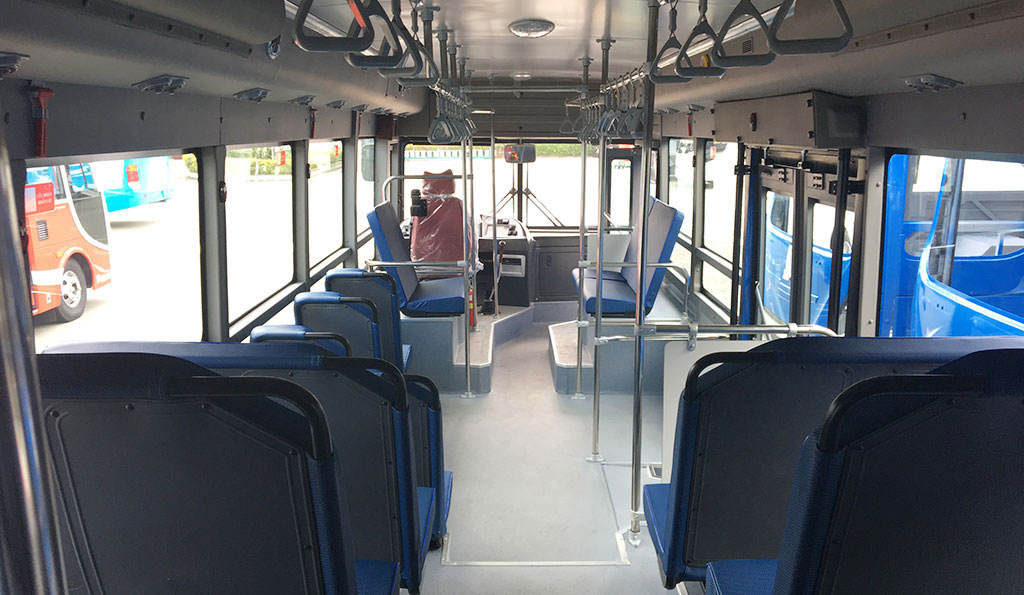

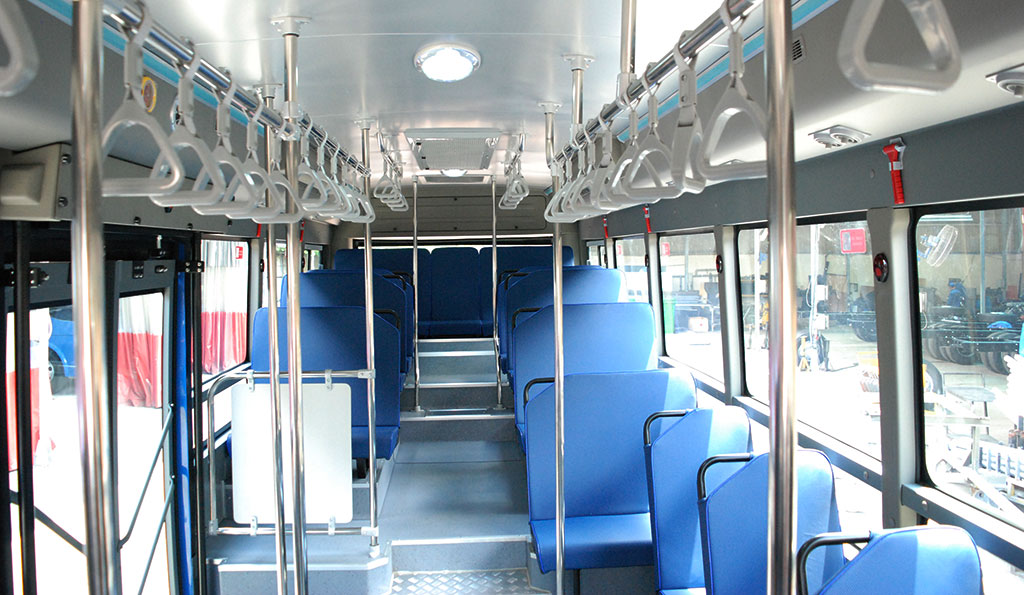

Spacious and comfortable passenger compartment
