K-TIGER EV Bus
📩 leekyo7915@daum.net

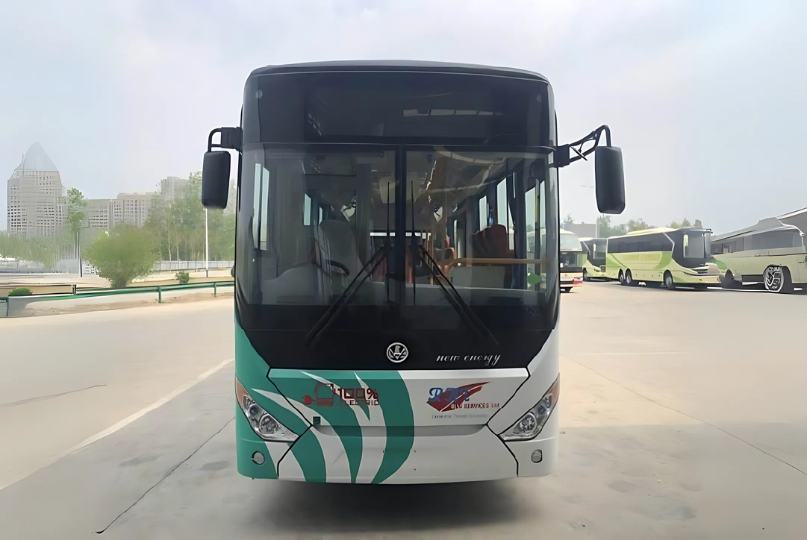

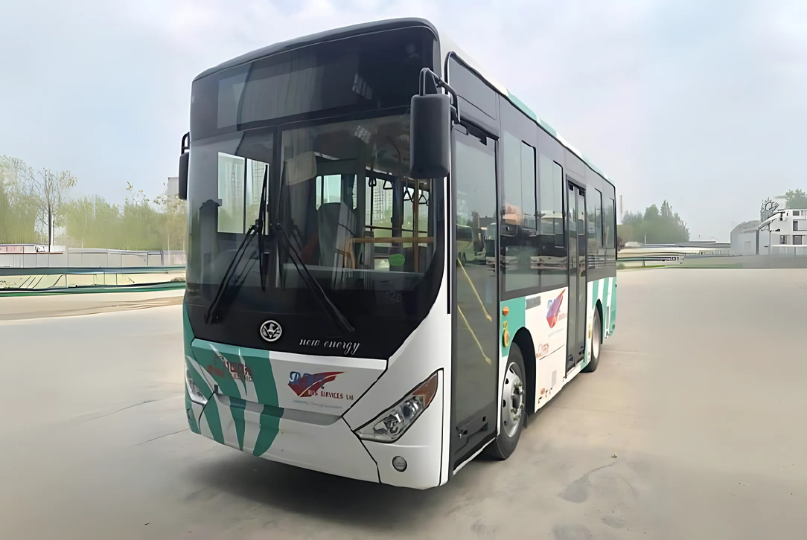

The KHLCK6850EVG is an electric bus designed for efficient urban transportation, featuring a battery capacity of 255 kWh from CATL and a Jingjin motor. With an overall length of 8,915 mm and a wheelbase of 4,400 mm, it ensures a smooth and stable ride. The bus accommodates up to 50 passengers (22 seated) and has a right-hand steering configuration. Its maximum speed of 55 km/h and first step height of 380 mm make it accessible and eco-friendly, suitable for city transit
Contact us:
| OVERALL SPECIFICATION | |
|---|---|
| Overall length (mm) | 8915 |
| Overall width(mm) | 2530 |
| Overall height(mm) | 3160 |
| Wheel base(mm) | 4400 |
| Front/rear overhang(mm) | 1875/2640 |
| Seating capacity ( person) | 50/22 |
| Max. speed (km/h) | 55 |
| POWER SYSTEM | |
| Battery capacity | 255kWh |
| Manufacturer | CATL |
| Motor | Jingjin |
| Max G.V.W. (kg) | 14000 |
| Approach/departure(º) | 11.5/10 |
| First step height(mm) | 380 |
| Steering location | Right |
| CHASSIS | |
|---|---|
| Front axle | 4.5T |
| Rear axle | 9.5T |
| Overall height(mm) | 3160 |
| Suspension | Airbag suspension 2/4 |
| Steering | Power assistant steering |
| Brake | Dual circuit air braking, Front and rear disc brake |
| Air drier | Domestic |
| Tire | 255/70R22.5×6 Goodyear |
| Battery /dynamo | 195A.h*2/ 24V |
| Others | ABS |
| MAIN BODY ASSEMBLY | |
| Interior trim | Shaped interior trimming |
| Door & door pump | Front and rear inner swing door |
| Windows & windscreen | Sliding windows with window rails, rubber-laminated windscreen , rear toughened glass |
| Rear mirror system | Manual, rear view 6” LCD monitor |
| A/C system | Driver fan, 24000Kcal/h |
| Video system | Disc player |
| Lamp | Combination light |
| Wiper | Electronic wiper，front window washer |
| Heating system | Front windscreen defroster |
| Seat | 22 seats, driver seat ZTZY1090 |
| Painting | High quality paint, body color painting depends on customer’s dema nd |
| 0thers | Plastic spraying handrail, driver curtain, driver fan, anti-slipping floor leather, side window curtain, 2kg fire extinguisher,2 ventila tors, electrical clock, front &rear electrical destination display, get off alarm device, cameras |

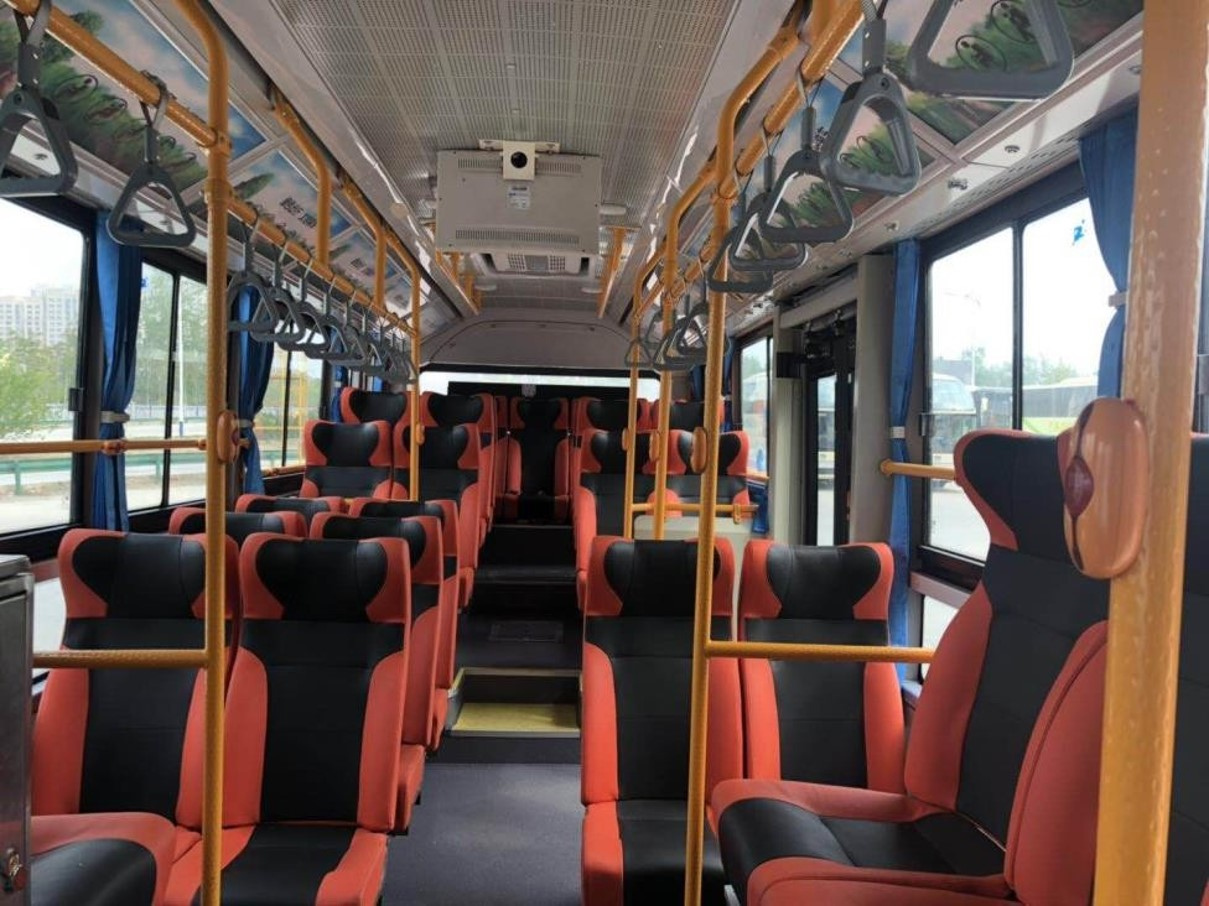

Bus Seat

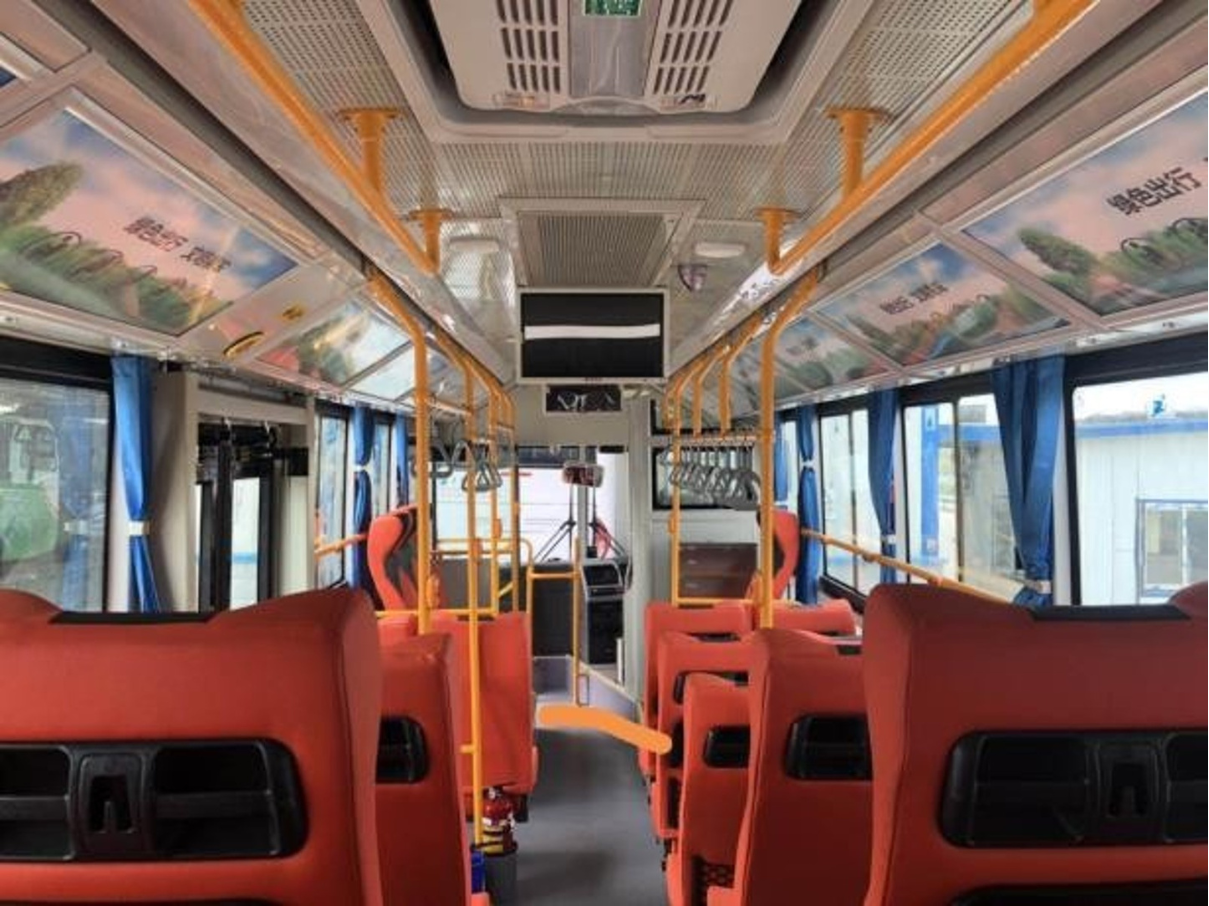

Bus Interior

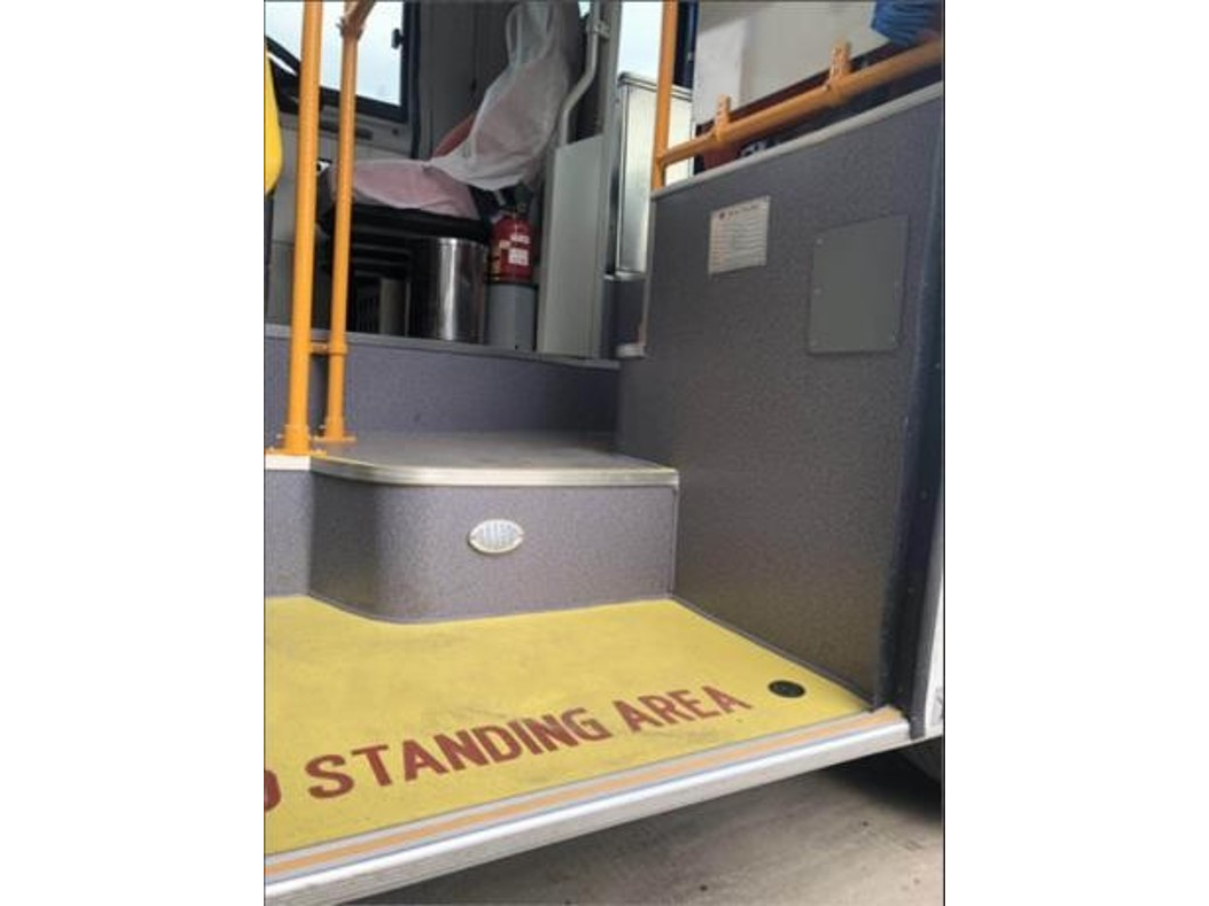

Bus Door
