Cabin chassis
K-TIGER Cabin chassis
📩 leekyo7915@daum.net

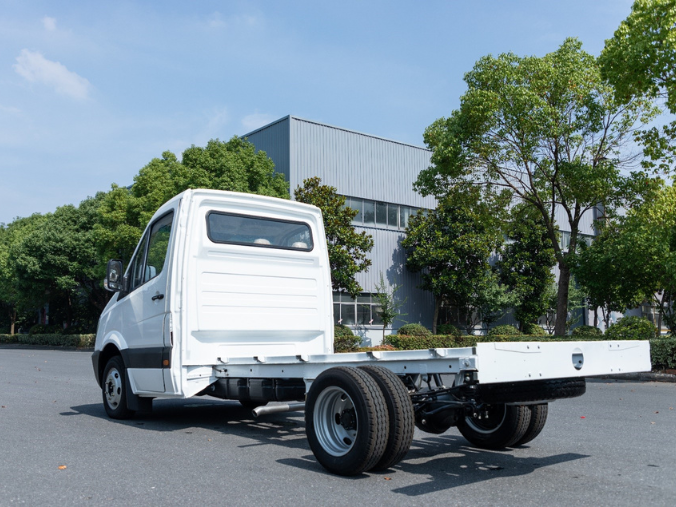

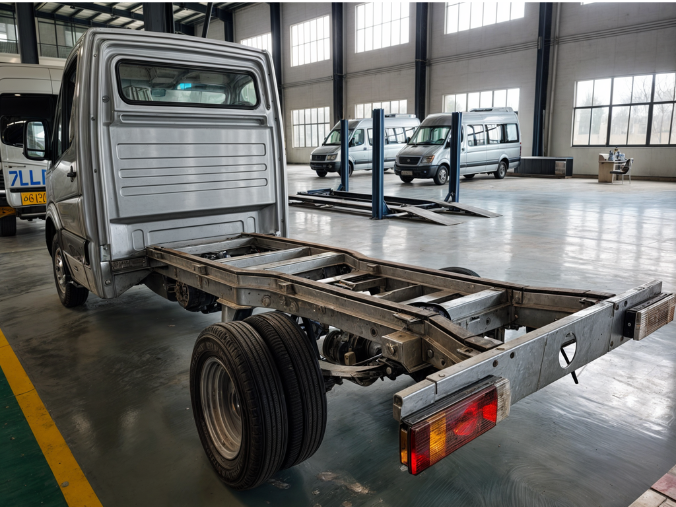

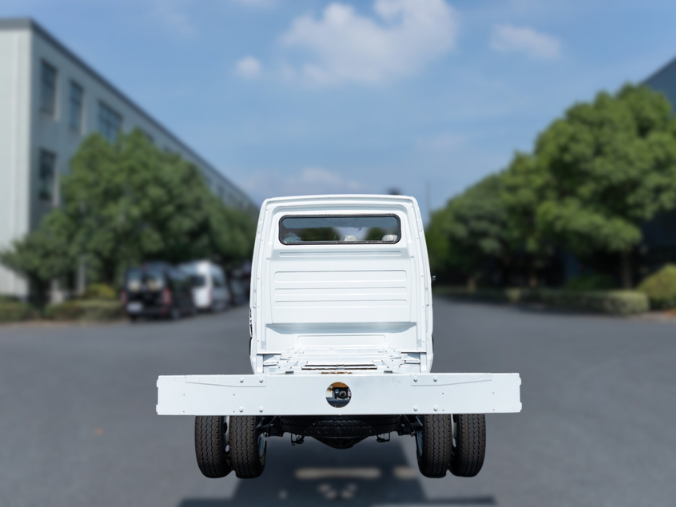

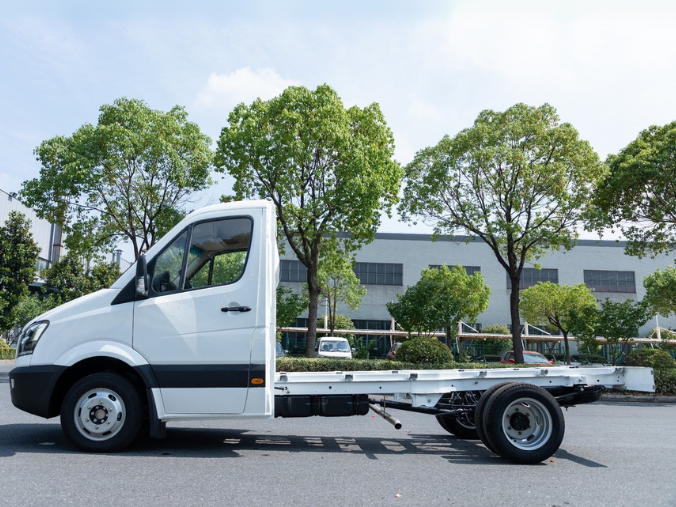

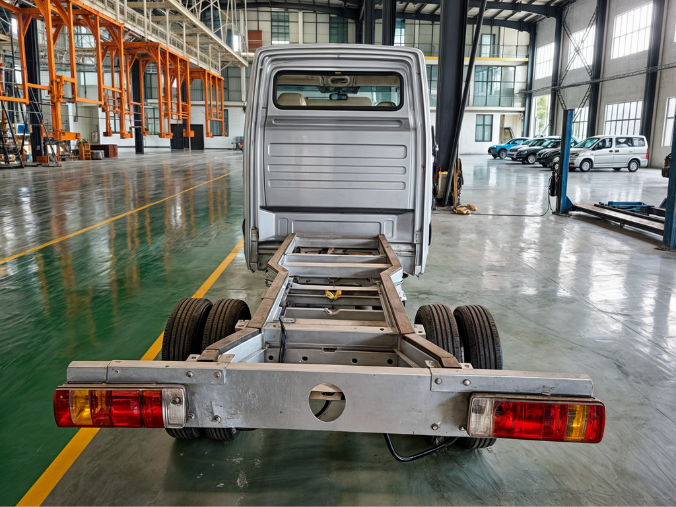

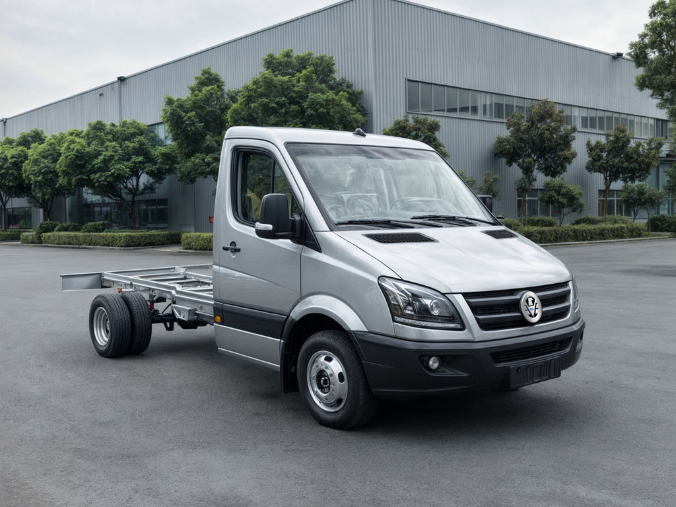

K-Tiger cabin chassis serves as a flexible platform for diverse commercial applications,offered in three lengths—5.9 meters, 6.9 meters, and 7.5 meters. customizable into a dry van, refrigerated truck, or wingbody truck. Built for exceptional durability and versatility.

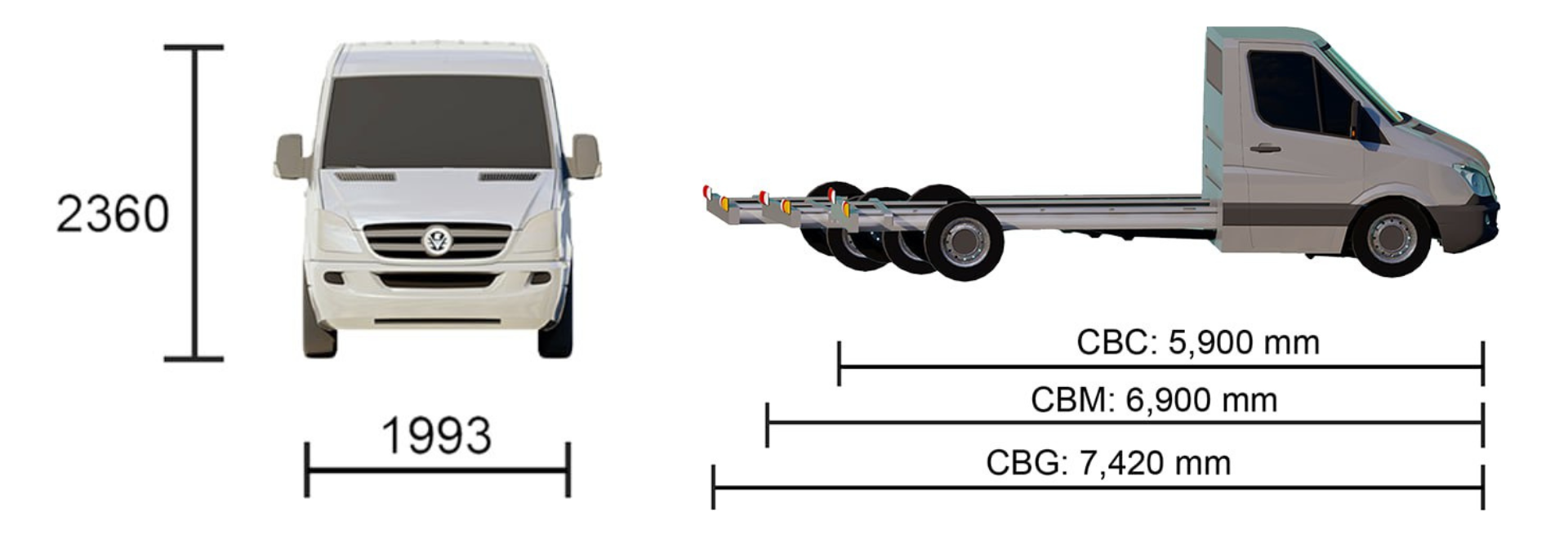

Layout
Color Available (any color customer can order):
Contact us:
Fuel Type
Diesel Euro 5
Body Type
cabin chassis
Model Year
2025
Specification
| DIMENSION | ||||
| OVERALL DIMENSION | LENGTH | 5900 | ||
| WIDTH | 1993 | |||
| HEIGHT | LOW-DECK | 2360 | ||
| HIGH-DECK | 2620 | |||
| WHEEL BASE | 3665 | |||
| TREAD SINGLE | FRONT | 1700 | ||
| REAR | 1720 | |||
| TREAD DOUBLE | FRONT | — | ||
| REAR | — | |||
| NUMBER OF SEATS | 2 | |||
| WEIGHT | CURB WEIGHT | 2200 | ||
| GVM | 4400 | |||
| MAX. SPEED (Km/h) | 130 | |||
| MAX. GRADABILITY | 30 | |||
| MIN. TURNING DIAMETER (m) | 13.5 | |||
| DIMENSION | ||||
| OVERALL DIMENSION | LENGTH | 6900 | ||
| WIDTH | 1993 | |||
| HEIGHT | LOW-DECK | 2360 | ||
| HIGH-DECK | 2620 | |||
| WHEEL BASE | 4325 | |||
| TREAD SINGLE | FRONT | — | ||
| REAR | — | |||
| TREAD DOUBLE | FRONT | 1689 | ||
| REAR | 1525 | |||
| NUMBER OF SEATS | 2 | |||
| WEIGHT | CURB WEIGHT | 2500 | ||
| GVM | 5000 | |||
| MAX. SPEED (Km/h) | 120 | |||
| MAX. GRADABILITY | 20 | |||
| MIN. TURNING DIAMETER (m) | 16 | |||
| DIMENSION | ||||
| OVERALL DIMENSION | LENGTH | 7420 | ||
| WIDTH | 1993 | |||
| HEIGHT | LOW-DECK | 2360 | ||
| HIGH-DECK | 2620 | |||
| WHEEL BASE | 4325 | |||
| TREAD SINGLE | FRONT | — | ||
| REAR | — | |||
| TREAD DOUBLE | FRONT | 1689 | ||
| REAR | 1525 | |||
| NUMBER OF SEATS | 2 | |||
| WEIGHT | CURB WEIGHT | 2550 | ||
| GVM | 5500 | |||
| MAX. SPEED (Km/h) | 120 | |||
| MAX. GRADABILITY | 20 | |||
| MIN. TURNING DIAMETER (m) | 16 | |||
Body & suspension
| Rear Axle | Load Capacity | Single Tyre | 2500 |
| Double Tyre | — | ||
| Tyre | Single Tyre | 215/75R16LT | |
| Double Tyre | — | ||
| Body Structure | LHD | ||
| Front Suspension Type | Spring Independent Suspension | ||
| Rear Suspension Type | Leaf spring | ||
| Rear Axle | Load Capacity | Single Tyre | — |
| Double Tyre | 3500 | ||
| Tyre | Single Tyre | — | |
| Double Tyre | 195/75R16 , 205/75R16 | ||
| Body Structure | LHD | ||
| Front Suspension Type | Spring Independent Suspension | ||
| Rear Suspension Type | Leaf spring | ||
| Rear Axle | Load Capacity | Single Tyre | — |
| Double Tyre | 3500 | ||
| Tyre | Single Tyre | — | |
| Double Tyre | 195/75R16 , 205/75R16 | ||
| Body Structure | LHD | ||
| Front Suspension Type | Spring Independent Suspension | ||
| Rear Suspension Type | Leaf spring | ||
| Power | Engine | Model | K-TIGER cabin chassis |
| Manufacturer | KHM | ||
| Horse-Power | 140 | ||
| Power-Rate (Kw/rpm) | 103 | ||
| Torque (N.m/rpm) | 350 | ||
| Emission Standard | Euro 5 | ||
| Displacement (cc) | 2360 | ||
| Transmission | 6 M T | ||
| Drive Type | RWD | ||
| Feature | Availability |
|---|---|
| Standard painting (White) | • |
| Front electric left right side windows | • |
| Crystal and halogen headlamps | • |
| Steel wheels | • |
| 4 direction adjustable driver seat | • |
| CAN-BUS diagnostics | • |
| Vehicle anti-theft | • |
| ABS/EBD | • |
| Three-point seat belt for driver seat with alarm | • |
| Instantaneous fuel consumption display | • |
| Sustainable mileage display | • |
| MP3/Radio | • |
| Electric turn and signal integrated rearview mirror | • |
| Full frequency speaker | • |
| 5000kcal front and rear air conditioner | • |
| Folding remote control key | • |
| Delay headlamps | • |
| Automatically unlock | • |
| Automatically lock (≥15kmh) | • |
| Passenger sliding door | • |
| Multifunction steering wheel | • |
| Front fog lamp | • |
| Central lock | • |
| Feature | Availability |
|---|---|
| Airbag | ○ |
| Digital clock | ○ |
| MP5 + Reversing monitor | ○ |
| Parking radar | ○ |
Features
Stereo controls on the Steering wheel.
detect and relay crucial data like speed, temperature, and proximity to ensure optimal functionality, fuel efficiency, and accident prevention.
Adjustable arm rests for both driver and passenger seats.
The multi-function instrument cluster provides clearly structured, easy to read data.
